- Enormous common mode impedance Z
- Small dimensions
- 1:1 turns ratio
- High current ratings
- Ambient temperature –40°C to +
- Storage temperature Component: Applications
- Suppression of common mode noise
- Power supply system
- Data lines
ELECTRIC CHARACTERICS
SMD Common Mode Line Filter FC-SDLF7345 –Series
| Part Number | Test condition | Inductance(uH) | Z(Ω) | Rated Current(mA) | DC Resistance N1,N2(Ω) |
| FC-SDLF7345-100 | 100KHZ/0.1V | 10±30% | 10000 | 1100 | 0.12 |
| FC-SDLF7345-101 | 100±30% | 50000 | 350 | 0.95 | |
| FC-SDLF7345-471 | 470±30% | 100000 | 150 | 4.30 | |
lElectrical Specifications @ 25°C — Operating Temperature -40°C to +125°C.

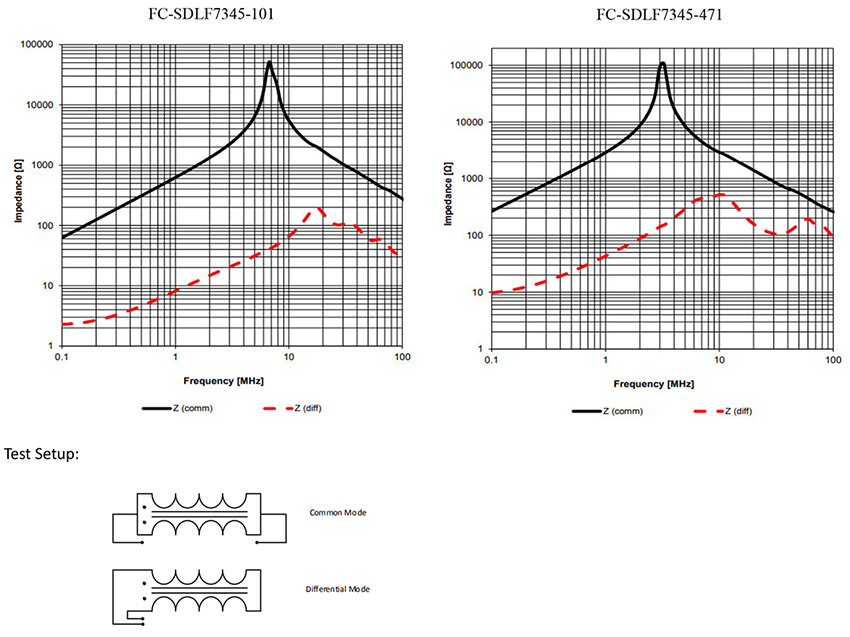

Dimensions:mm

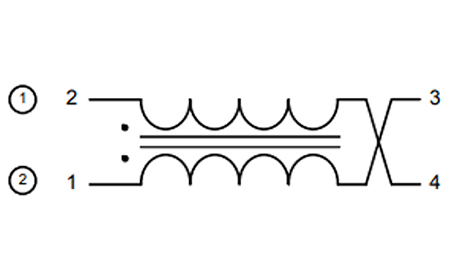

Schematic

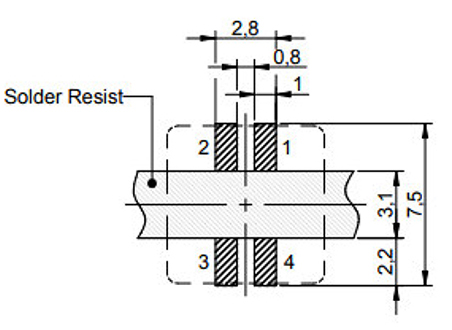

LAYOUT RECOMMENDATION:(mm)
Classification Reflow Profile for SMT components:
