- Inductance range: 320H Min
- turns Ratio: 1:1
- Insulation Test Voltage: 500VDC
- Rated Current: 9A
- Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICAL DATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | N1=N2 | 1.0mH | 1.0KHz,0.25V,25℃ | HP4284A |
| 2 | IR | COIL~CORE | 100Mohm Min | DC500V | MF2511 |
| 3 | turns Ratio | N1:N2 | 1:1 | 20KHz,1V,25℃ | TH3250 |
| 4 | DCR | N1=N2 | 12mΩ /Max | 25℃ | CH502 |
| 5 | Insulation Test Voltage | COIL => COIL | 500V/DC | 50Hz 2mA 60S | CJ2670 |
| 6 | Rated Current | N1/N2 | 9A | △T≦40℃ | 6240 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C

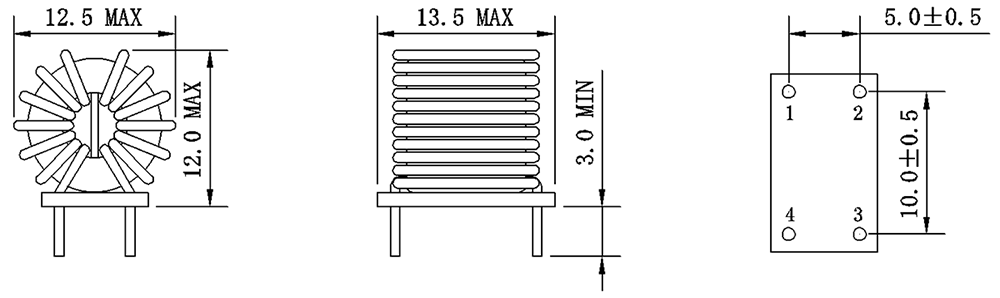

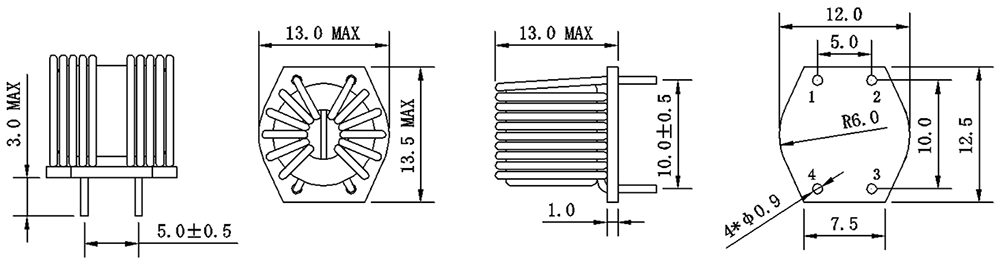

Dimensions:mm

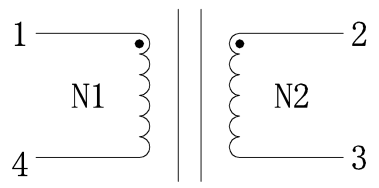

Schematic:

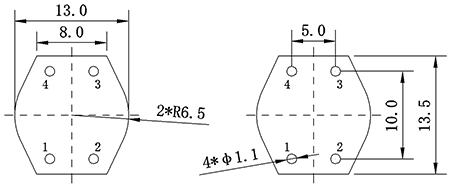

RecommendeLand Pattern: mm
