- turns Ratio: 1:1
- Easy assembling due to 4 pin housing
- Toroidal core choke with sector winding
- High interference suppression for common mode
- interferences in low and middle frequency rangesLow stray field
- Compact and small size4 soldering pins for perfect mechanical decoupling
- Ambient temperature: –40 ℃ to +85 ℃
- Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
| Part Number | Inductance | HI-POT | DCR(mΩ MAX) | Current Rating (A) | Rated Voltage(AC) |
| COIL～COIL | COIL～CORE | ||||
| FC-SLF1813-251-6A-LF | 250uH | 2250V/AC | 500V/DC | 20.0 | 6A/min;8A/typ | 85-285V |
| FC-SLF1813-2.0mH-6A-LF | 2.0mH | 2250V/DC | 500V/DC | 10.0 | 6A/min;8A/typ |
| FC-SLF1813-5.0mH-3.5A-LF | 5.0mH | 2250V/DC | 500V/DC | 120.0 | 3.5A |
| FC-SLF1813-10mH-2.5A-LF | 10.0mH | 2250V/DC | 500V/DC | 180.0 | 2.5A |
Inductance Test Freq：FC-SLF1813-251-6A-LF: 10.0KHz /0.1V
FC-SLF1813-2.0mH-6A-LF: 10KHz /0.1V
FC-SLF1813-5.0mH-3.5A-LF: 1KHz /0.1V
FC-SLF1813-10mH-2.5A-LF: 1KHz /0.1V
Current Rating base on Temp. rise 40℃ max.

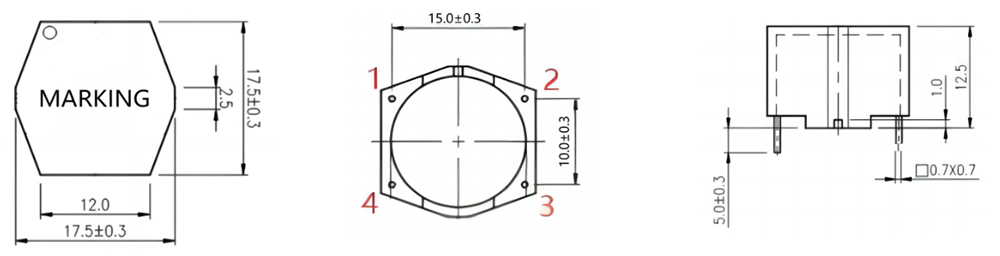

Dimensions:mm

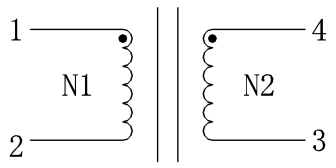

Schematic:

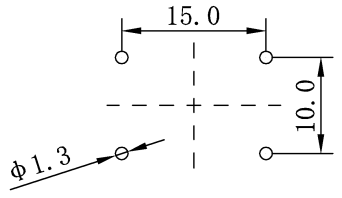

RecommendeLand Pattern: mm
