• High inductance range
  • High current range
  • Small package
  • Low profile
  • Surface mount technology
  • Wide range of filtering spectrum
  • Climatic category 40/125/21
  • Flammability corresponding to UL 94 V-0


General information:


It is recommended that the temperature of the part does not exceed 125°C
under worst case operating conditions.
  • Ambient temperature: -40°C to +85°C (refering to IR)
  • Operating temperature: -40°C to +125°C
  • Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
  • Test conditions of Electrical Properties: 20°C, 33% RHif not specified differently


ELECTRIC CHARACTERICS

FC-SLF1410 –Series SMD Common Mode Line Filter

Part NumberInductance L:mH±30%Current Rating (mA)RDC(Ω) @ 20°CRated voltage(V)Insulation test voltage(V)
FC-SLF1410-1300.01310.00.002780500
FC-SLF1410-5600.0567.00.0047
FC-SLF1410-1210.125.50.011
FC-SLF1410-3210.323.250.029
FC-SLF1410-1521.51.500.120
FC-SLF1410-4724.70.750.520
FC-SLF1410-103100.500.920
FC-SLF1410-283280.302.8
FC-SLF1410-473470.254.0
FC-SLF1410-683680.205.0
FC-SLF1410-1041000.158.5

Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .C to +130°C
Test equipment: Inductance(HP-4274A 10KHZ/0.1V)

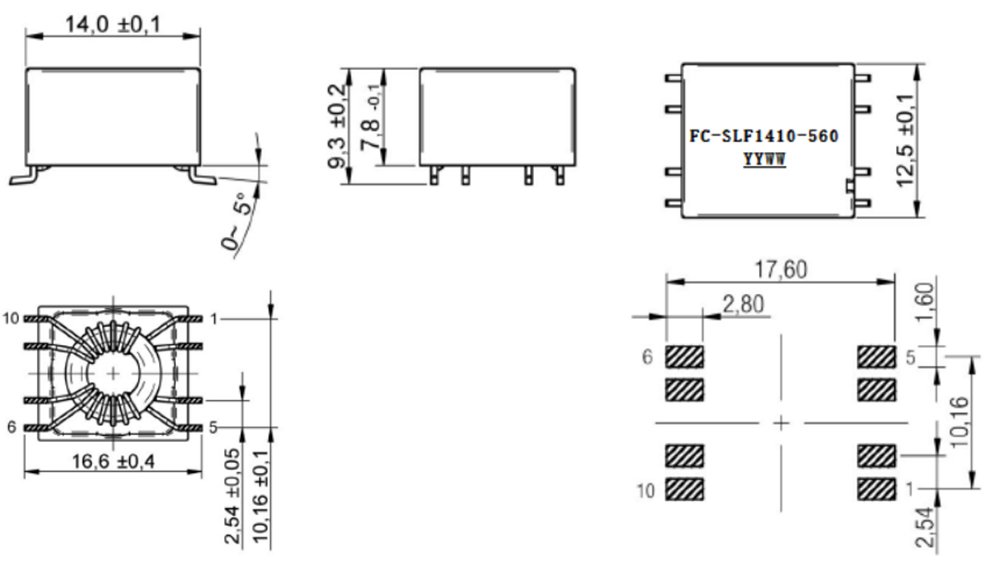

Dimensions:mm
SMD Common Mode Line Filter FC-SLF1410 –Series

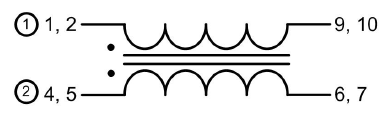

Schematic:
SMD Common Mode Line Filter FC-SLF1410 –Series

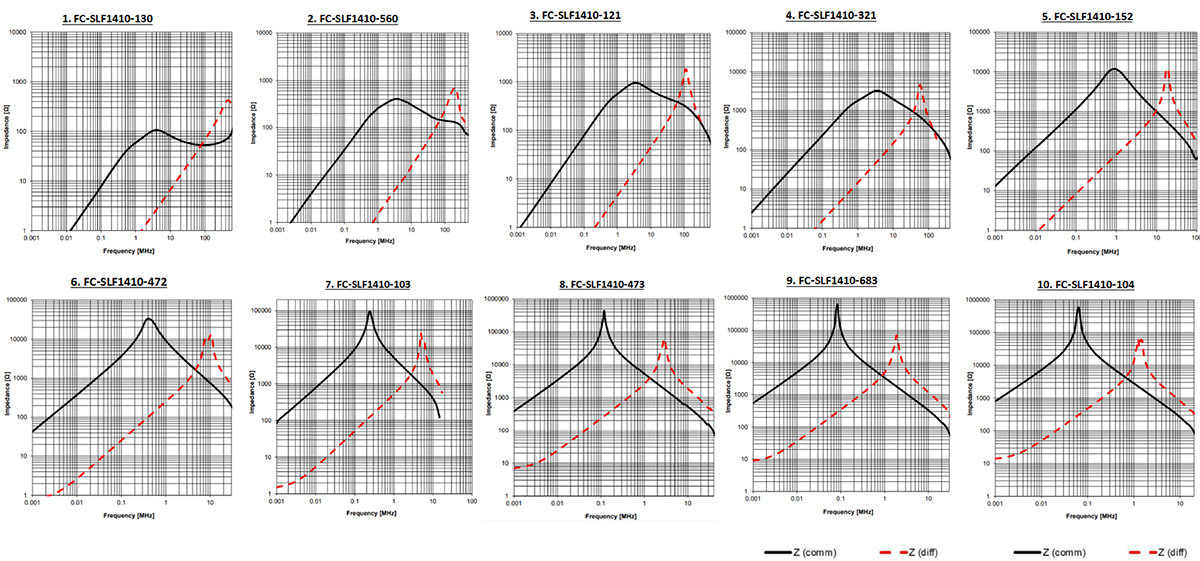

IMPEDANCE VS﹒ FREQUENCY ：
SMD Common Mode Line Filter FC-SLF1410 –Series
