- High current common mode choke
- Broadband suppression for common mode noise
- Custom designs on request
- Inductance range: 15.0mH
- Insulation Test Voltage: 1500VAC
- turns Ratio: 1:1
- Rated Current: 12A
- Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICALDATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductance | N1=N2 | 10.0mH/MIN～15.0mH/typ | 1KHz,0.3V,25℃ | HP4284A |
| 2 | IR | COIL～CORE | 100Mohm MIN | DC500V | MF2511 |
| 3 | turns Ratio | N1:N2 | 1:1 | 20KHz,1V,25℃ | TH3250 |
| 4 | DCR | N1=N2 | 9.5mΩTYP～15.0mΩMAX | 25℃ | CH502 |
| 5 | Insulation Test Voltage | COIL～COIL | 1500V/AC | 50Hz 3mA 5S | CJ2670 |
| COIL～CORE | 500V/AC | 50Hz 3mA 5S | CJ2670 | ||
| 6 | Rated Current | N1/N2 | 10A-13A | △T≦40℃(Ta=25℃) | 6240 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C

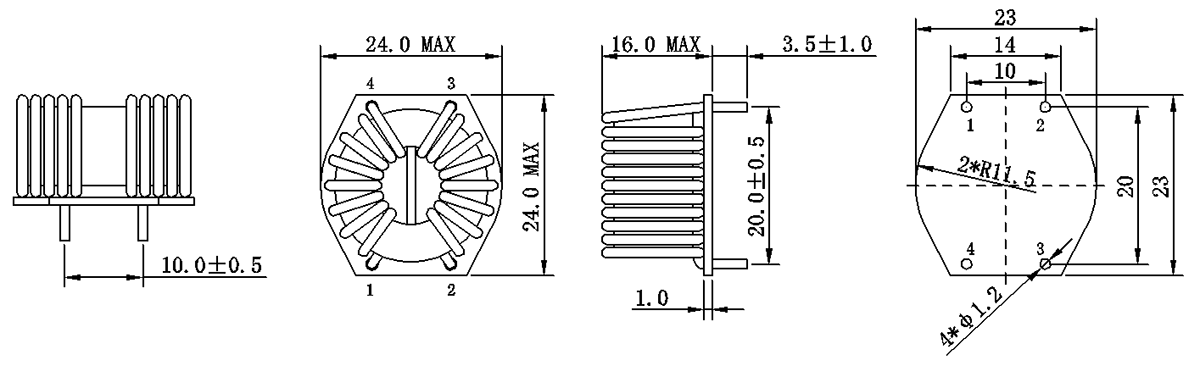

Dimensions:mm

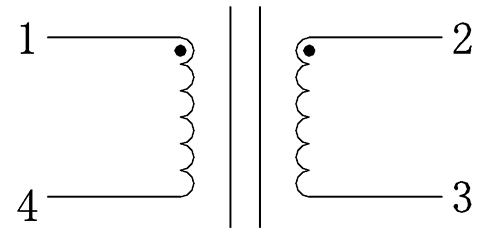

Schematic:

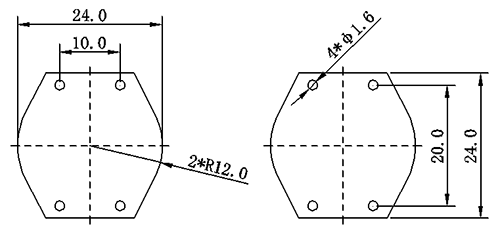

RecommendeLand Pattern: mm
