FC20100210 .Common and differential mode suppression Inductors

Isolation Voltage：1875VAC for 1 second
Safety Detail：Designed for UL1993 US Lighting
Standards Detail：Designed to meet UL Insulation System
Operating Temp：-40℃ to +125℃
Common and differential mode suppression Inductors
High differential mode inductance with low resistance
Extremely compact design
Reduces components needed
Small PCB footprint

Download PDF

Applications:

Power tools
CCFL/LED lighting
White goods
Power electronics
Electronics ballasts
Offline switching power
Filtering on device with unstable ground
Power line input and output filters

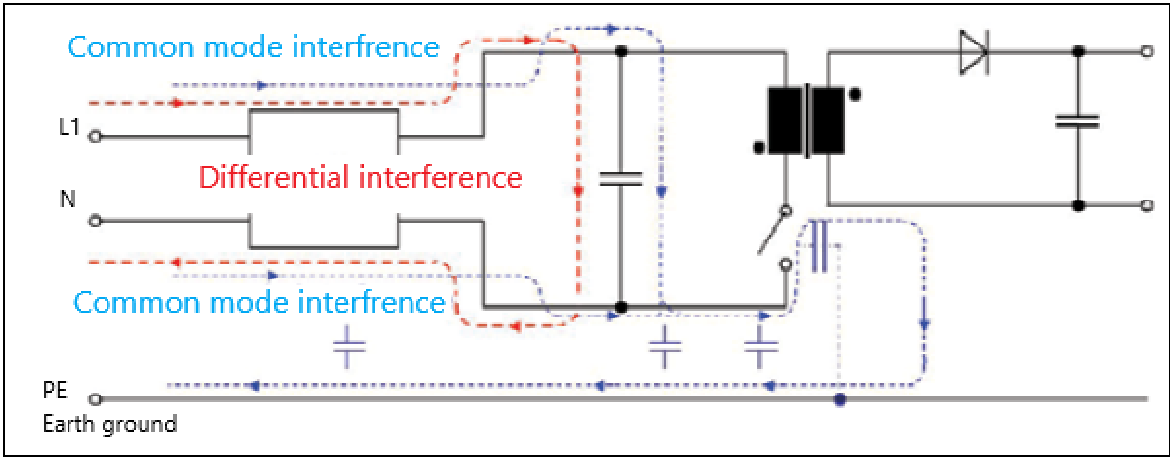

Common Mode And Differential Mode interference

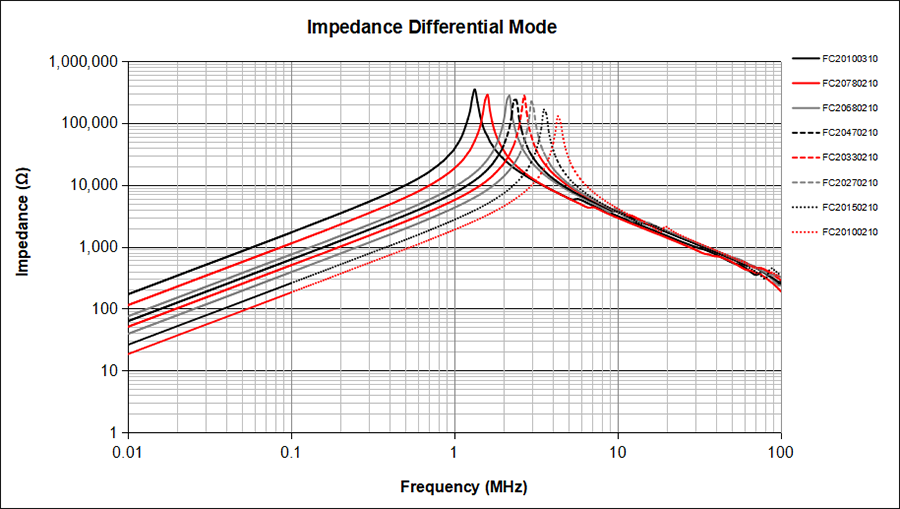

Impedance Common Mode

FC20100210 .Common and differential mode suppression Inductors

Schematic:

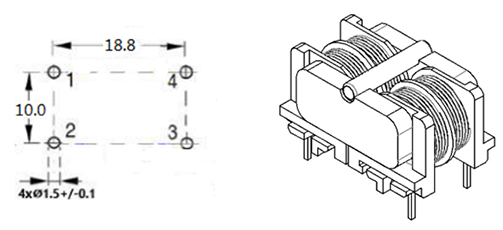

RecommendeLand Pattern: mm

Dimensions: mm

Electrical Properties:

(specified @25℃ if not mentioned otherwise) *) typical value
All values without tolerances are typical values. Inductance and Lstray test condition 10KHz/50mV

NO.	FC Ordering Code	Inductance(mH)+50%/-30%	Ir (A)	Lstray,typ(µH)	DCR(Ω)Type	DCR(Ω)Max
1	FC20100310	100	0.5	5770	2.90	3.87
2	FC20780210	78	0.61	4100	1.96	2.57
3	FC20680210	68	0.64	3500	1.80	2.38
4	FC20470210	47	0.75	2700	1.28	1.67
5	FC20390210	39	0.85	2100	1.10	1.60
6	FC20330210	33	0.98	1680	0.76	1.01
7	FC20150210	15	1.45	795	0.38	0.52
8	FC20100210	10	1.85	470	0.23	0.32
9	FC20330110	3.3	2.5	85	0.16	0.21

Hi-Pot: Windings to Core:1500Vac/50Hz 1.0mA 2S, W1 to W2, 2500Vac, 50Hz 1.0mA 2S, Rated Voltage: 85-265Vac
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C
