- Suitable for common noise reduction of AC Line.
- Common mode noise filter for broadband transmission or communication equipment
- Low power coupled common mode inductor
ELECTRIC CHARACTERICS
| Part Number | Inductance L:mH /typ 1.0KHZ/0.3V | RDC(mΩ) @ 25°C | Current Rating (A) | Insulation test voltage(ACV) |
| FC-DL2018D-5.0mH-20A-L | 4.0-5.0-8.0 | 6.0/max | 20.0A | 500V |
lElectrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .C

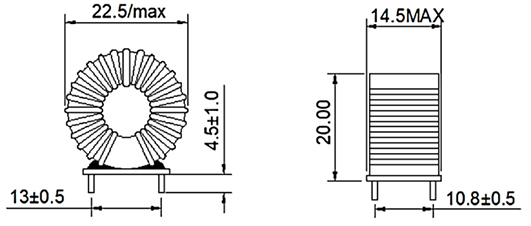

Dimensions:mm
LAYOUT RECOMMENDATION

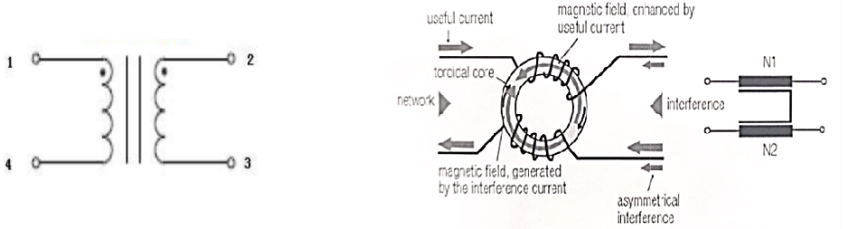

Schematic:
