- High current common mode choke
- Inductance range: 250H +50%/-30%
- turns Ratio: 1:1
- Insulation Test Voltage: 1000VDC
- Rated Current: 15A
- Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICAL DATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | N1=N2 | 250H +50%/-30% | 100KHz,0.3V,25℃ | HP4284A |
| 2 | Inductors Deflection | |L(1-2)-L(3-4)| | 8H /MAX | 100KHz,0.3V,25℃ | HP4284A |
| 3 | IR | COIL~CORE | 100Mohm MIN | DC500V | MF2511 |
| 4 | turns Ratio | N1:N2 | 1:1 | 20KHz,1V,25℃ | TH3250 |
| 5 | DCR | N1=N2 | 7mΩ /MAX | 25℃ | CH502 |
| 6 | Insulation Test Voltage | COIL => COIL | 1000V/DC | 50Hz 2mA 60S | CJ2670 |
| 7 | Rated Current | N1/N2 | 15A | △T≦55℃ | 6240 |
Ambient temperature :–40°C to +125°C
Operating temperature:–40°C to +125°C

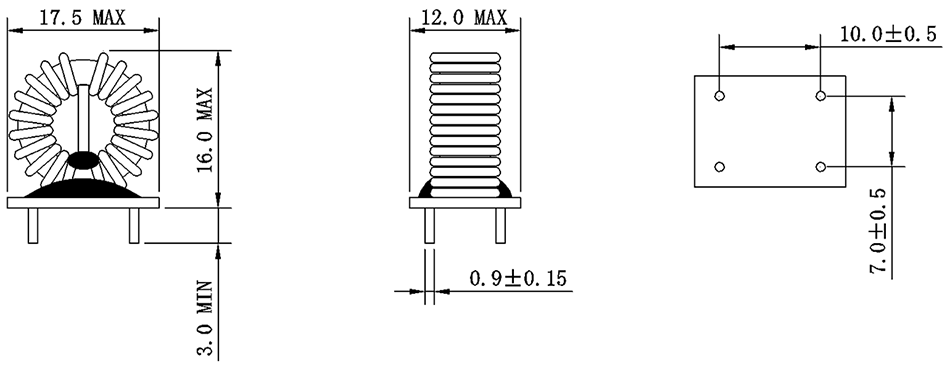

Dimensions:mm

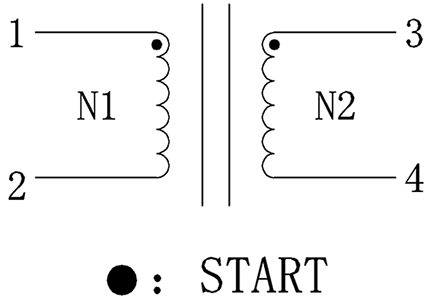

Schematic:

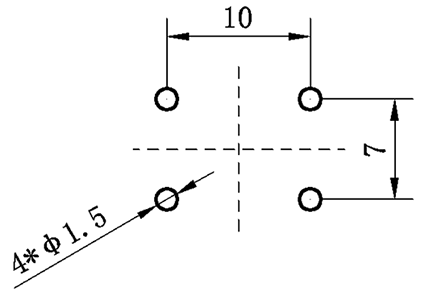

RecommendeLand Pattern: mm
