- Suitable for common noise reduction of AC Line.
- Common mode noise filter for broadband transmission or communication equipment
ELECTRIC CHARACTERICS
| Part Number | Inductance L:mH(-30%+50%)10KHZ/0.3V | RDC(mΩ) @ 25°C | Current Rating (A) | Insulation test voltage(ACV) |
| FC-DLFH2520-102Y-HF | 1.0 | 6.5/max | 18A | 1500V |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .

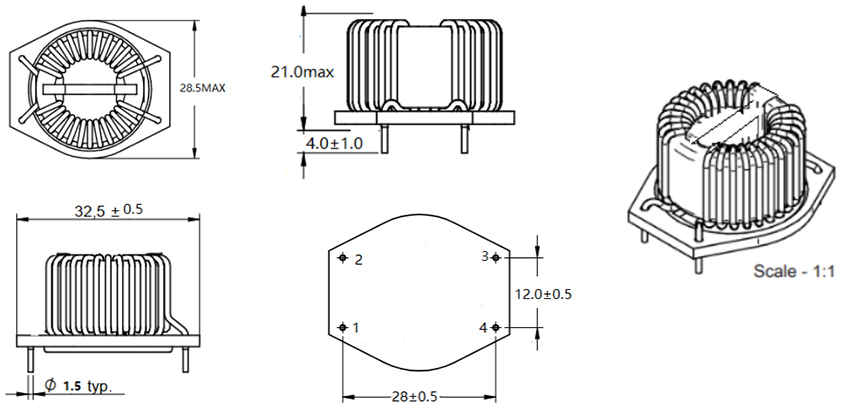

Dimensions:mm

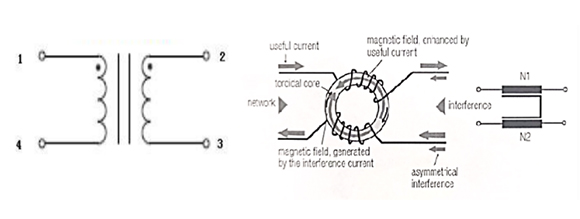

Schematic:
LAYOUT RECOMMENDATION

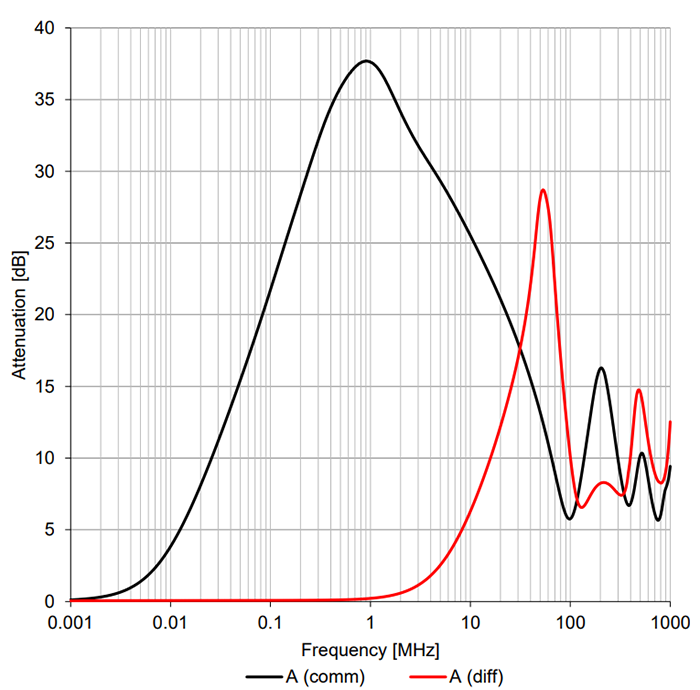

Typical Attenuation:

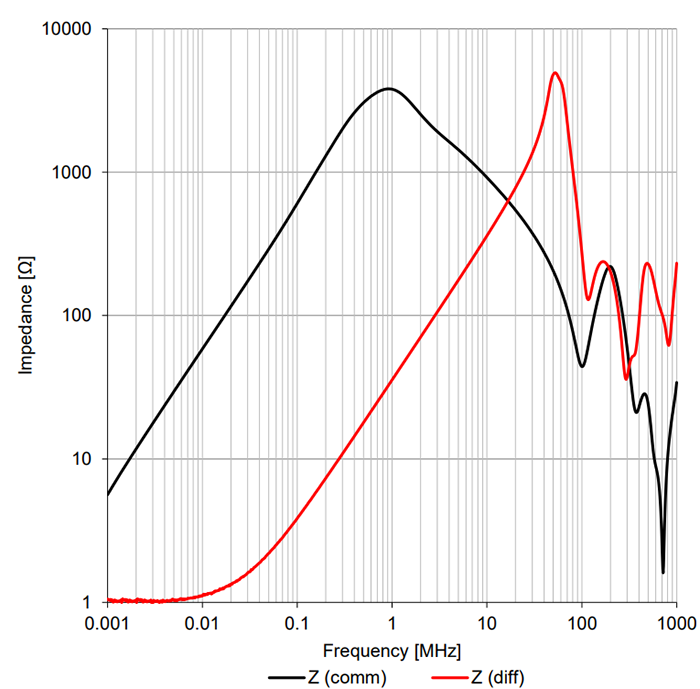

Typical Impedance Characteristics:
