- High performance (Isat) realized by metal dust core
- Low loss realized with low DCR
- Compliance with RoHS and Halogen Free
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
Coupled common-mode inductor
| Part Number | L0 Inductance (uH)@(0A) | DCR(mΩ) | Heat Rating Current DCAmps.Irms(A) | Saturation Current DCAmps.Isat(A) | |||
| Typical | Max. | Typical | Max. | Typical | Max. | ||
| FC-SLF1008-100M-LF | 10.0 | 39.0 | 45.0 | 5.3 | 4.3 | 11.0 | 10.0 |
| FC-SLF1008-150M-LF | 15.0 | 46.0 | 50.0 | 4.5 | 3.6 | 9.0 | 8.0 |
| FC-SLF1008-220M-LF | 22.0 | 68.0 | 75.0 | 3.5 | 3.0 | 7.0 | 6.5 |
| FC-SLF1008-330M-LF | 33.0 | 89.0 | 100.0 | 3.0 | 2.4 | 5.0 | 4.5 |
Note
1.All test data is referenced to 25℃ ambient. Note
2.Test Condition ：100KHz, 1.0Vrms Note
3.IRMS : DC current (A) that will cause an approximate ΔT of 40℃
4.Isat : DC current (A) that will cause L0 to drop approximately 30%
5.K : Coefficient of coupling Note
6.Operating Temperature Range -55℃ to +165℃ Note
7.The part temperature (ambient + temp rise) should not exceed 165℃ under the worst
case operating conditions. Circuit design, component placement, PCB trace size
and thickness, airflow and other cooling provision all affect the part temperature. Parttemperature should be verified in the end application

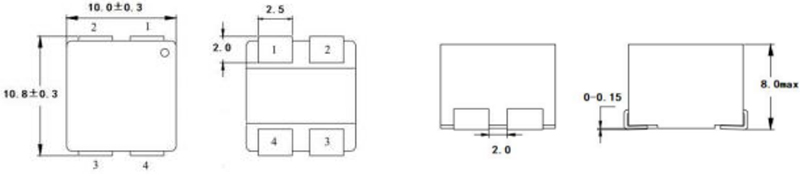

Dimensions:mm

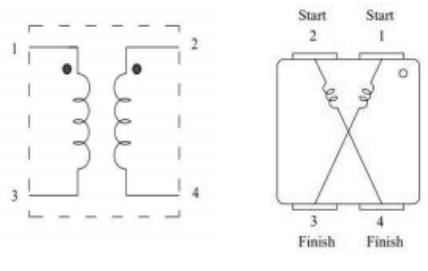

Schematic:
LAYOUT RECOMMENDATION:(mm)

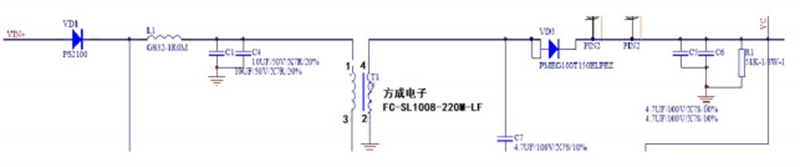

Application Fig:

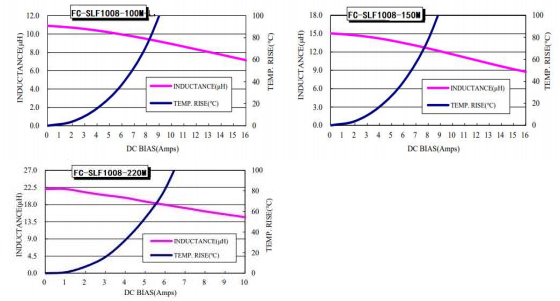

Current Characteristic
