- SMD power line choke
- Compact size
- Toroidal core with sector winding
- Insulation Test Voltage: 500VAC
- Rated Current: 6.5A △T≦45℃(Does not include room temperature)
- High attenuation of common mode interferences in low and middle frequency range
- Recommended solder profile: Reflow
- Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICAL DATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | N1=N2 | 0.9mH /MIN | 1KHz,0.3V,25℃ | HP4284A |
| 2 | IR | COIL~CORE | 100Mohm MIN | DC500V | MF2511 |
| 3 | turns Ratio | N1:N2 | 1:1 | 20KHz,1V,25℃ | TH3250 |
| 4 | DCR | N1=N2 | 25mΩ /MAX | 25℃ | CH502 |
| 5 | Insulation Test Voltage | COIL => COIL | 500V/AC | 50Hz 1mA 2S | CJ2670 |
| 6 | Rated Current | N1/N2 | 6.5A | △T≦45℃ Does not include room temperature | 6240 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C

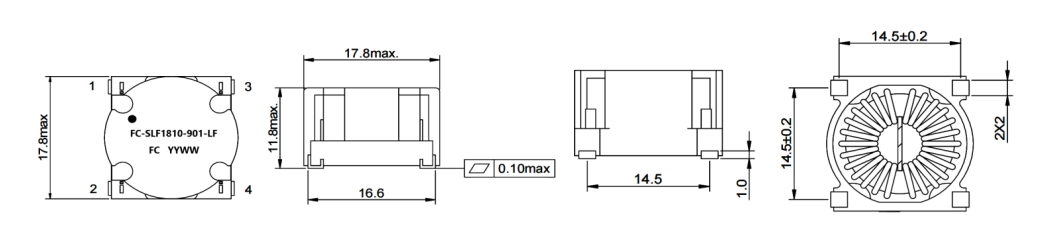

Dimensions:mm

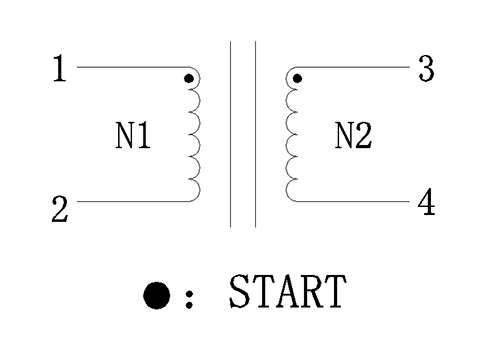

Schematic:

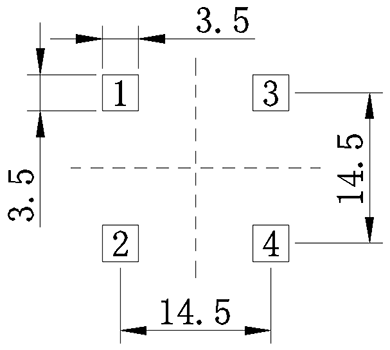

RecommendeLand Pattern: mm
