- Suitable for common noise reduction of DC Line.
- Common mode noise filter for broadband transmission or communication equipment
ELECTRIC CHARACTERICS
FC-DLF1015-161B-LF Common Mode Power Line Choke
| Part Number | Inductance L:uH(typ) | Impedance100MHZ(Ω) | RDC(mΩ) @ 20°C | Current Rating (A) | Insulation test voltage(DCV) |
| FC-DLF1015-161B-LF | 1.5 | 160-200 | 0.3 | 35.0min-75A | 2250V |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .

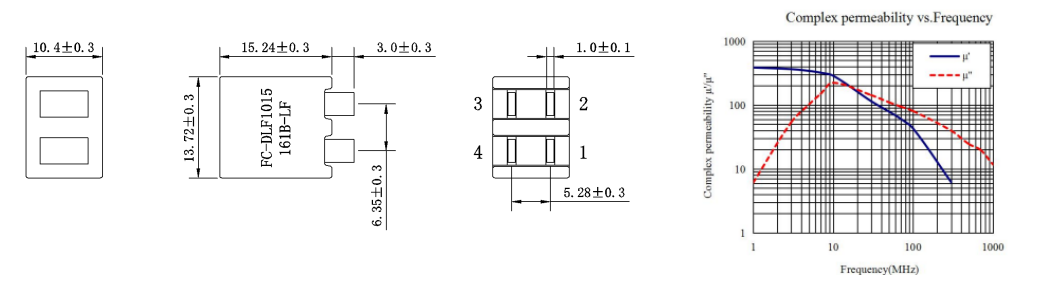

Dimensions:mm

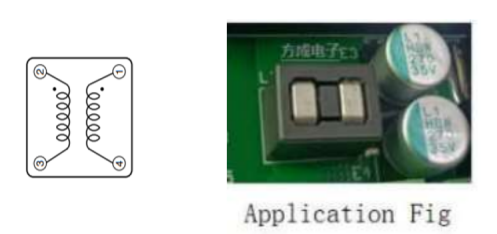

Schematic:

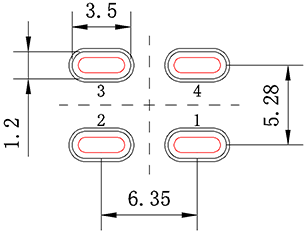

LAYOUT RECOMMENDATION

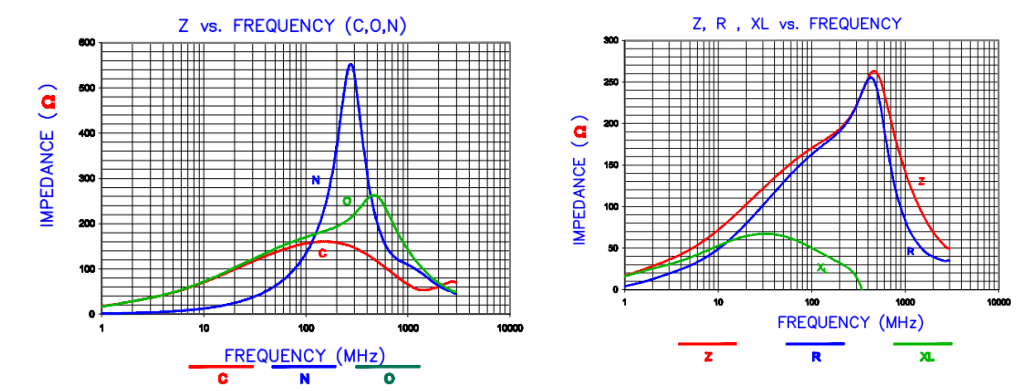

Impedance characteristics：
