- Suitable for common noise reduction of DC Line.
- Common mode noise filter for broadband transmission or communication equipment
ELECTRIC CHARACTERICS
FC-DLF1010-750B-LF Common Mode Power Line Choke
| Part Number | Inductance L:uH(typ) | Impedance100MHZ(Ω) | RDC(mΩ) @ 20°C | Current Rating (A) | Insulation test voltage(DCV) |
| FC-DLF1010-750B-LF | 1.5 | 75min-200typ | 0.3 | 75.0 | 2250V |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .

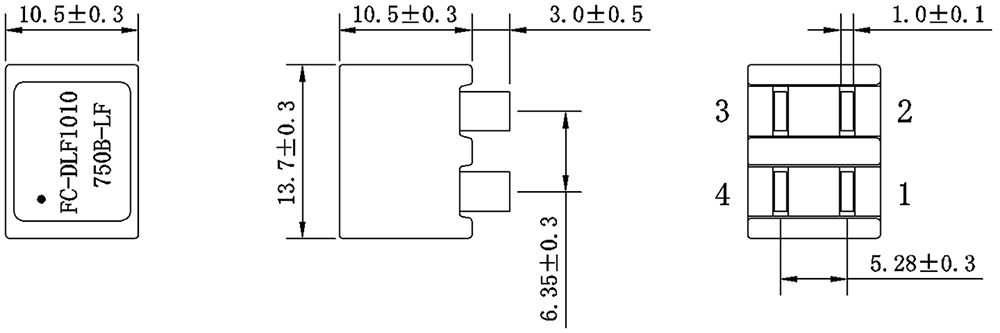

Dimensions:mm

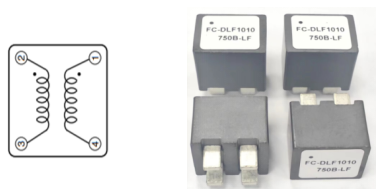

Schematic:
LAYOUT RECOMMENDATION

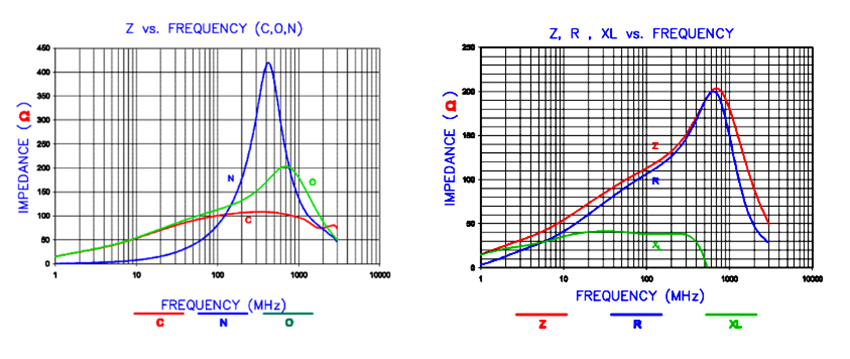

Impedance characteristics：
