- High Impedance up to 13000 Ω
- High current up to2500mA
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
FC-SLF1065 –Series SMD Common Mode Line Filter
| Part Number | Turns Ration | Current Rating (mA) | Inductance(uH) | RDC (Ω937;) | Z / Max (Ω937;) | WE Number |
| WE-SLM | ||||||
| FC-SLF1065121 | 1:1 | 2500 | 2*120 | 0.025 | 460 | 744272121 |
| FC-SLF1065221 | 1:1 | 2200 | 2*220 | 0.032 | 780 | 744272221 |
| FC-SLF1065251 | 1:1 | 2000 | 2*250 | 0.035 | 970 | 744272251 |
| FC-SLF1065471 | 1:1 | 1600 | 2*470 | 0.065 | 1750 | 744272471 |
| FC-SLF1065102 | 1:1 | 950 | 2*1000 | 0.180 | 3600 | 744272102 |
| FC-SLF1065202 | 1:1 | 750 | 2*2200 | 0.300 | 7500 | 744272222 |
| FC-SLF1065302 | 1:1 | 650 | 2*3300 | 0.360 | 8900 | 744272332 |
| FC-SLF1065402 | 1:1 | 520 | 2*3900 | 0.540 | 9600 | 744272392 |
| FC-SLF1065502 | 1:1 | 350 | 2*4700 | 0.720 | 13000 | 744272472 |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .C to +130°C
Test equipment: Inductance(HP-4274A 100KHZ/0.1V)

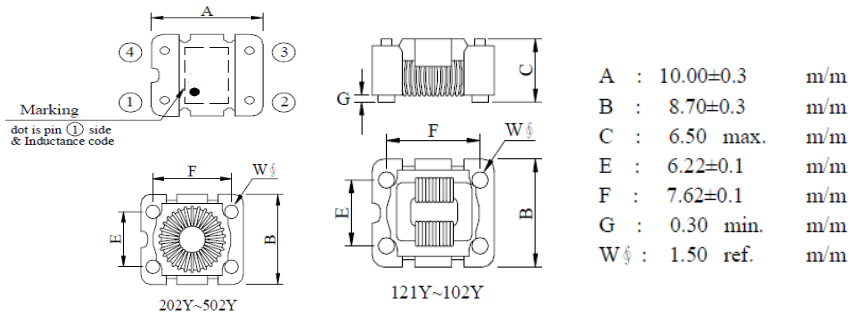

Dimensions:mm
Schematic:
Test Setup:
LAYOUT RECOMMENDATION

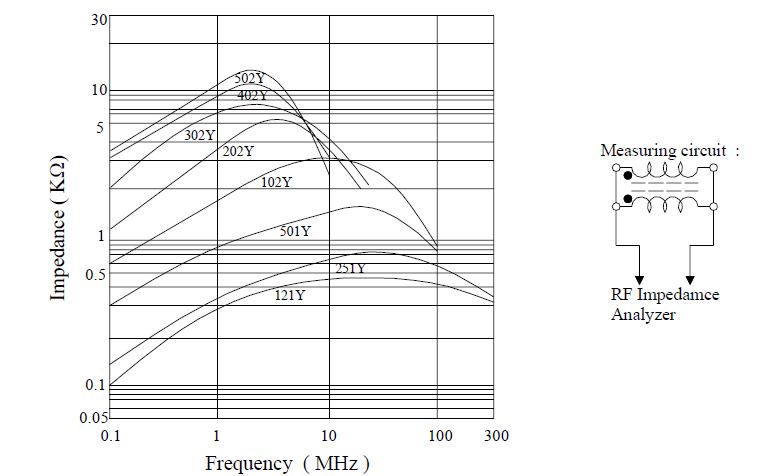

.IMPEDANCE VS﹒ FREQUENCY ：
