- High Impedance up to 1500 Ω
- Frequency Range: 1MHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
FC-SLF0905 –Series SMD Common Mode Line Filter
| Part Number | Test condition | DC Resistance N1,N2(Ω937;) | Inductance (uH) | Nominal voItage Vdc(V) | Rated Current (A) | Freq Range (MHZ) |
| FC-SLF0905-100YL | 0.1V,1kHz | 0.08 max | 10±30% | 50 | 1.6 | 20~300 |
| FC-SLF0905-250YL | 0.1V,1kHz | 0.16 max | 25±30% | 50 | 1.0 | 20~150 |
| FC-SLF0905-400YL | 0.1V,1kHz | 0.25 max | 40±30% | 50 | 0.9 | 20~100 |
| FC-SLF0905-500YL | 0.1V,1kHz | 0.32 max | 50±30% | 50 | 0.8 | 20~100 |
| FC-SLF0905-251YL | 5mV,100KHz | 0.13 max | 250±50% | 50 | 1.2 | 3~20 |
| FC-SLF0905-471YL | 5mV,100KHz | 0.14 max | 470±50% | 50 | 1.1 | 2~20 |
| FC-SLF0905-501YL | 5mV,100KHz | 0.15 max | 500±50% | 50 | 1.0 | 1~20 |
| FC-SLF0905-102YL | 5mV,100KHz | 0.31 max | 1000±50% | 50 | 0.8 | 1~15 |
| FC-SLF0905-202YL | 5mV,100KHz | 0.45 max | 2000±50% | 50 | 0.6 | 1~5 |
| FC-SLF0905-472YL | 5mV,100KHz | 0.90 max | 4700±50% | 50 | 0.4 | 0.3~3 |
| FC-SLF0905-652YL | 5mV,100KHz | 1.05 max | 6500±50% | 50 | 0.3 | 0.3~2 |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C.C to +130°C
Test equipment : Inductance 100Y ~ 500Y ( HP4274A ) ;251Y ~ 652Y ( HP4194A )

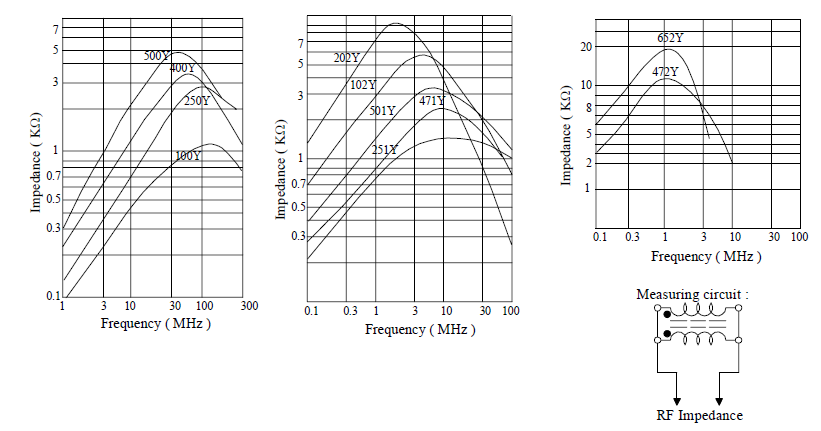

Impedance 100Y ~ 202Y ( HP4291A ) 472Y ~ 652Y ( HP4194A )
HI-Pot test ( N1-N2 ) ：500Vac / 60Hz , 3mA , 3sec.

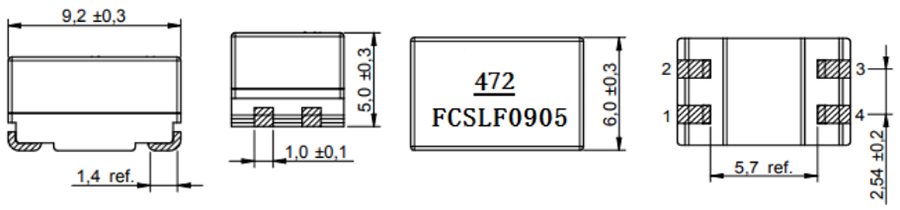

Dimensions:mm

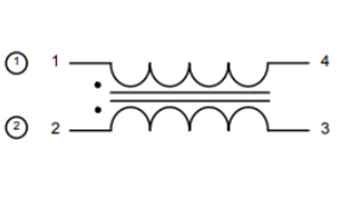

Schematic:
LAYOUT RECOMMENDATION:(mm)

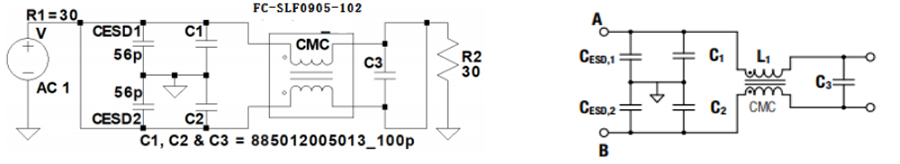

Application Fig:
Classification Reflow Profile for SMT components:
