- Insulation Resistance 10MΩ min
- Frequency Range: 100kHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
FC-SLF0504 –Series -SMD Common Mode Line Filter
| Number Part | Common mode impedance (at 100MHz , 20 degree C) | Current Rating2 (mA) | FREQ. (MHz) | RDC (mΩ937;) | Z / Max (Ω937;) typ |
| FC-SLF0504191 | 0.19 (typ.) | 5000 | 100MHz | 20 | 164.0 |
| FC-SLF0504351 | 0.35 (typ.) | 2000 | 100MHz | 40 | 321.0 |
| FC-SLF0504102 | 1.00 (typ.) | 1500 | 100MHz | 60 | 872.8 |
| FC-SLF0504152 | 1.50 (typ.) | 1000 | 100MHz | 100 | 1292.0 |
| FC-SLF0504302 | 3.00 (typ.) | 500 | 100MHz | 200 | 2940.0 |
| FC-SLF0504302 | 4.00 (typ.) | 200 | 100MHz | 300 | 5620.0 |
Rated voltage 50 Vdc ；Withstand Voltage 125Vdc
Insulation Resistance 10MΩ min. IDC base on Temp. rise 40℃ typ.
Inductance Test Condition.：100kHz / 0.1V

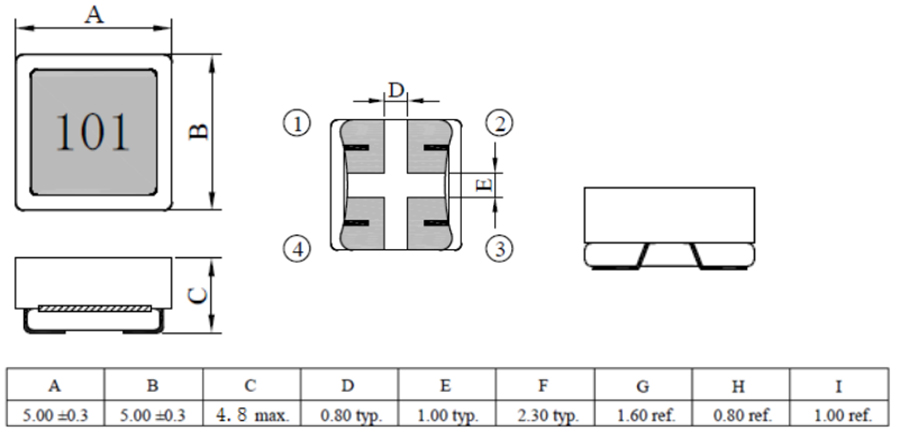

Dimensions:mm

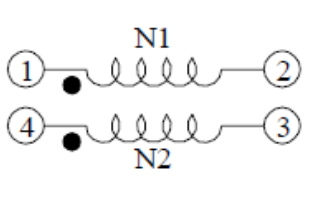

Schematic:

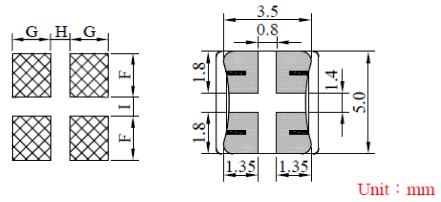

LAYOUT RECOMMENDATION

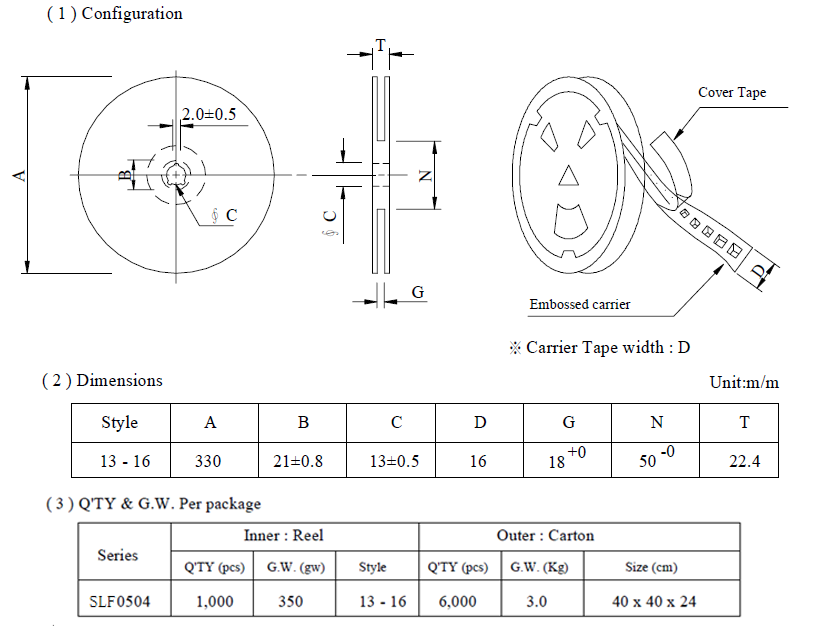

PACKAGING INFORMATION：
