- High curren capability up to300mA
- Frequency Range: 10 kHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
FC-SLF0503 –Series SMD Common Mode Line Filter
| Part Number | Turns Ration | Current Rating2 (mA) | Inductance | RDC(Ω) | Z / Max(Ω) | WE Number |
| 1-4 2-3 | 1-4 2-3 | WE-SLM | ||||
| FC-SLF0503110 | 1:1 | 300 | 2*11 | 0.18 | 800 | 744242110 |
| FC-SLF0503220 | 1:1 | 300 | 2*22 | 0.23 | 1500 | 744242220 |
| FC-SLF0503330 | 1:1 | 300 | 2*33 | 0.27 | 2000 | 744242330 |
| FC-SLF0503510 | 1:1 | 300 | 2*51 | 0.32 | 2500 | 744242510 |
| FC-SLF0503101 | 1:1 | 300 | 2*100 | 0.58 | 4000 | 744242101 |
| FC-SLF0503501 | 1:1 | 400 | 2*500 | 0.35 | 2200 | 744242471 |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .

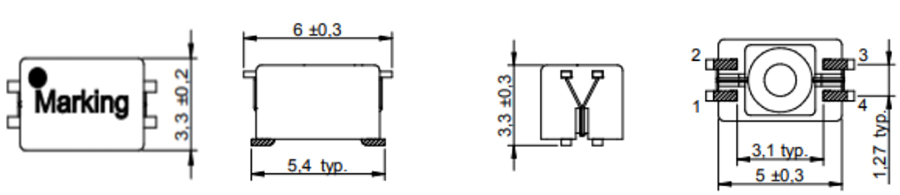

Dimensions:mm

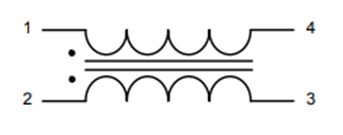

Schematic:

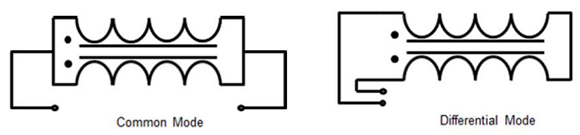

Test Setup:
LAYOUT RECOMMENDATION
Typical Impedance Characteristics:
