- Insulation Resistance 10MΩ min
- Frequency Range: 100 kHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS
FC-SLF0502 –Series -SMD Common Mode Line Filter
| Number Part | Inductance(uH) | Common mo deimpedance (at 100MHz) | IDC(A) | RDC(mΩ) | Z / Max(KΩ) | Freq.range(MHz) |
| FC-SLF0502101YL | 0.23 | 0.10±35% | 6.0 | 15.0 | 0.06 | 90 |
| FC-SLF0502251YL | 0.55 | 0.25±35% | 5.0 | 20.0 | 0.12 | 80 |
| FC-SLF0502501YL | 1.10 | 0.50±35% | 4.0 | 30.0 | 0.20 | 60 |
| FC-SLF0502102YL | 2.50 | 1.00±35% | 2.0 | 45.0 | 0.40 | 50 |
| FC-SLF0502142YL | 2.60 | 1.40±35% | 1.5 | 55.0 | 0.45 | 40 |
Inductance Test Condition.：100kHz / 0.1V，Rated voltage 50 Vdc ；Withstand Voltage 125Vdc
Insulation Resistance 10MΩ min. IDC base on Temp. rise 40℃ typ.

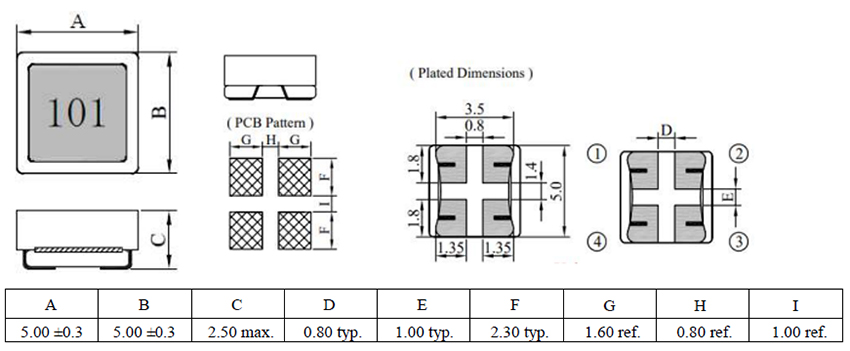

Dimensions:mm
Schematic:

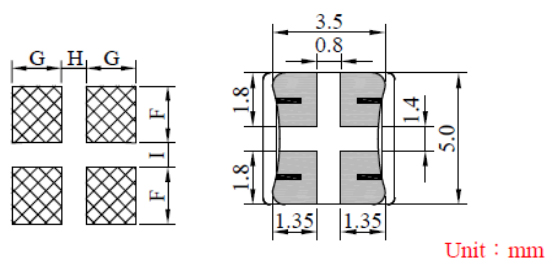

LAYOUT RECOMMENDATION

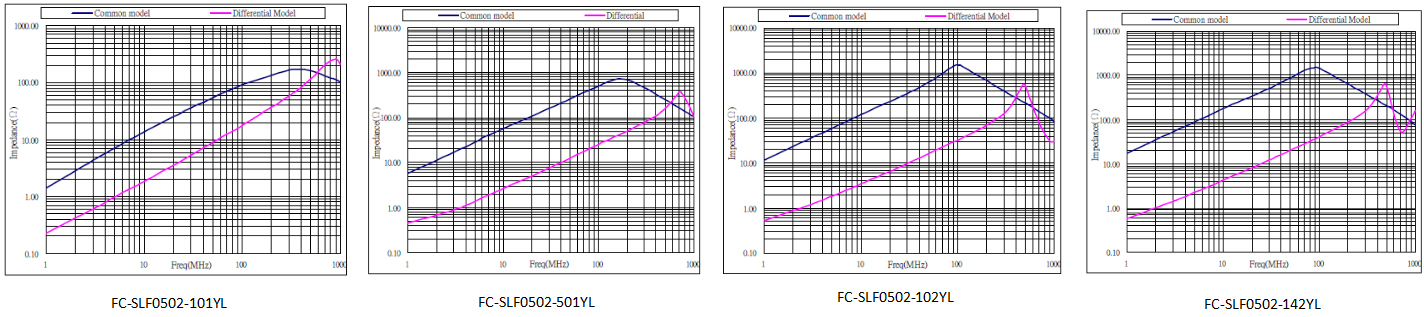

Typical Impedance Characteristics:
