- SFW2012 realizes small size and low profile
- High common mode impedance at high suppressionperformance
- Suitable for differential signal line likeUSB0,IEEE 1394 and LVDS
- Lead is not contained in the product Applications:
- Common mose noise suppression of signal lines in high speed and high density digital equipment such as personal computers and peripherals
- Ideal for use as common-mode chokes forUSB1USB0/IEEE1394 interface

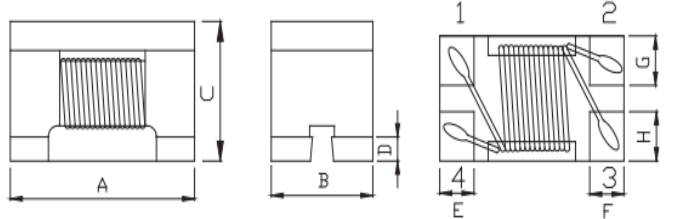

SHAPES AND DIMENSIONS Unit:mm
| PartNumber | A | B | C | D | E(ref) | F(ref) | G(ref) | H(ref) |
| LSFW2012 | 2.0±0.2 | 1.2±0.2 | 1.2±0.2 | 0.17±0.2 | 0.45 | 0.45 | 0.4 | 0.4 |
| LSFW3216 | 3.2±0.2 | 1.6±0.2 | 1.6±0.2 | 0.17±0.2 | 0.6 | 0.6 | 0.6 | 0.6 |
| LSFW3225 | 3.2±0.2 | 2.5±0.2 | 2.7±0.2 | 0.17±0.2 | 0.6 | 0.6 | 0.9 | 0.9 |
| LSFW4532 | 4.5±0.2 | 3.2±0.2 | 2.8±0.2 | 0.2±0.2 | 1.0 | 1.0 | 1.2 | 1.2 |
SHAPES AND DIMENSIONS Unit:mm

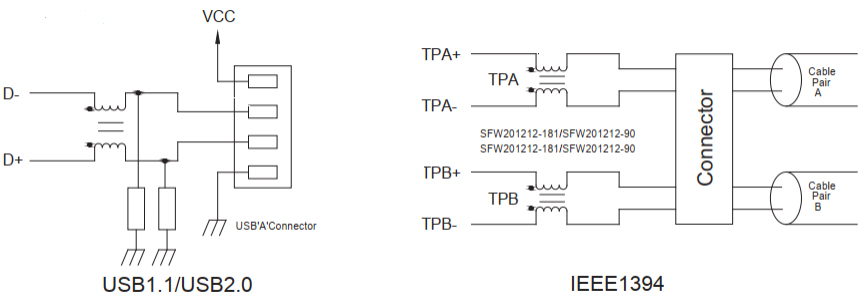

Application Fig:
LSFW2012-SERIES ELECTRICAL CHARACTERISTIC
| PART Number | Cmmon-Mode ImpdeanceZ(Ω) At 100MHz | Resistance Current Idc (Ω)max | Rated Current Idc (mA)max | Rated Voltage Vdc(V) | Withstanding Voltage Vdc(V) | Insulation Resistance (MΩ)min |
| LSFW2012-670-2P-R | 67±25% | 0.25 | 400 | 50 | 125 | 10 |
| LSFW2012-900-2P-R | 90±25% | 0.35 | 330 | 50 | 125 | 10 |
| LSFW2012-121-2P-R | 120±25% | 0.3 | 370 | 50 | 125 | 10 |
| LSFW2012-181-2P-R | 180±25% | 0.35 | 330 | 50 | 125 | 10 |
| LSFW2012-261-2P-R | 260±25% | 0.4 | 300 | 50 | 125 | 10 |
| LSFW2012-371-2P-R | 370±25% | 0.45 | 280 | 50 | 125 | 10 |
LSFW3216-SERIES ELECTRICAL CHARACTERISTICS
| LSFW3216-900-2P-R | 90±25% | 0.3 | 370 | 50 | 125 | 10 |
| LSFW3216-161-2P-R | 160±25% | 0.4 | 340 | 50 | 125 | 10 |
| LSFW3216-261-2P-R | 260±25% | 0.5 | 310 | 50 | 125 | 10 |
| LSFW3216-601-2P-R | 600±25% | 0.8 | 260 | 50 | 125 | 10 |
| LSFW3216-102-2P-R | 1000±25% | 1.0 | 230 | 50 | 125 | 10 |
| LSFW3216-222-2P-R | 2200±25% | 1.2 | 220 | 50 | 125 | 10 |
LSFW3225-SERIES ELECTRICAL CHARACTERISTICS
| LSFW3225-800-2P-R | 80±25% | 0.15 | 400 | 50 | 125 | 10 |
| LSFW3225-161-2P-R | 160±25% | 0.2 | 350 | 50 | 125 | 10 |
| LSFW3225-271-2P-R | 270±25% | 0.3 | 300 | 50 | 125 | 10 |
| LSFW3225-102-2P-R | 1000±25% | 0.5 | 200 | 50 | 125 | 10 |
LSFW4532-SERIES ELECTRICAL CHARACTERISTICS
| PART-Number | Cmmon-Mode ImpdeanceZ(Ω)At100MH | Resistance Current Idc (Ω)max | Rated Current Idc (mA)max | Rated Voltage Vdc(V) | Insulation Resistance (MΩ)min |
| LSFW4532-800S | 80±25% | 0.07 | 3 | 50 | 10 |
| LSFW4532-121S | 120±25% | 0.07 | 3 | 50 | 10 |
| LSFW4532-201S | 200±25% | 0.10 | 2 | 50 | 10 |
| LSFW4532-601S | 600±25% | 0.30 | 1.5 | 50 | 10 |
| LSFW4532-801S | 800±25% | 0.35 | 1 | 50 | 10 |
| LSFW4532-102S | 1000±25% | 0.40 | 1 | 50 | 10 |
