• SMD power line choke
  • Compact size
  • Toroidal core with sector winding
  • Insulation Test Voltage: 800VDC
  • Rated Current: 15ADC △T≦55℃(Does not include room temperature)
  • High attenuation of common mode interferences in low and middle frequency range
  • Recommended solder profile: Reflow
  • Operating temperature: –40 ℃ to +125 ℃
Electrical Properties
NO.ITEMSMEASURING POINTTECHNICAL DATATEST CONDITIONINSTRUMENT
1InductorsN1=N2430μH /MIN1KHz,1V,25℃HP4284A
2InductorsN1=N2270μH /MIN100KHz,1V,25℃HP4284A
3Deflection|L(1-2)-L(3-4)|10μH /MAX100KHz,1V,25℃HP4284A
4IRCOIL~CORE100Mohm MINDC500VMF2511
5turns RatioN1:N21:120KHz,1V,25℃TH3250
6DCRN1=N28mΩ /MAX25℃CH502
7Insulation Test VoltageCOIL => COIL800V/DC2mA  60SCJ2670
8Rated CurrentN1/N215ADC△T≦55℃ Does not include room temperature6240

Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C

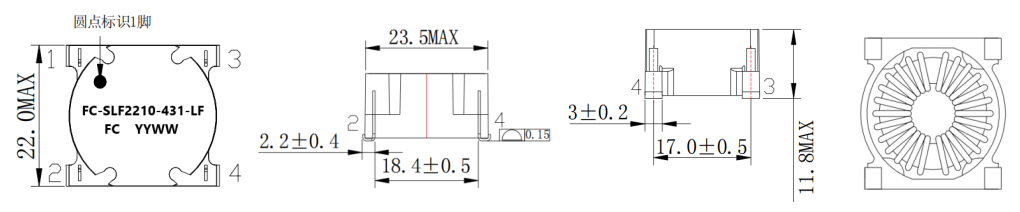

Dimensions:mm
Common Mode Power Line Choke FC-SLF2210-431-LF

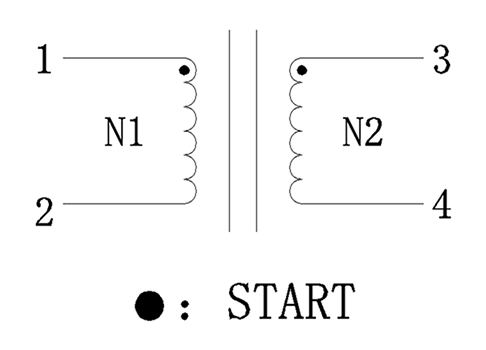

Schematic:
Common Mode Power Line Choke FC-SLF2210-431-LF

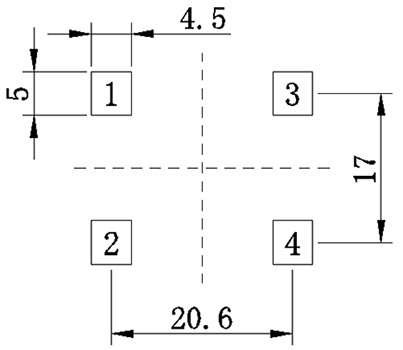

RecommendeLand Pattern: mm
Common Mode Power Line Choke FC-SLF2210-431-LF
