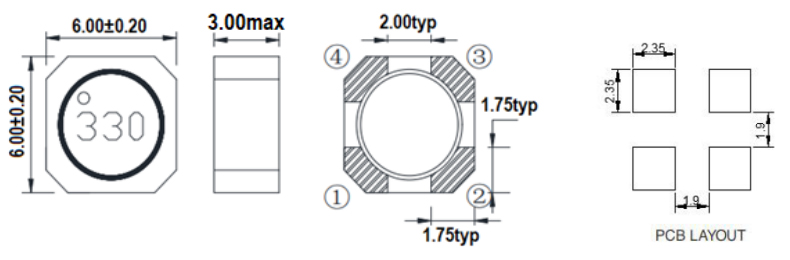

1. Dimensions:mm

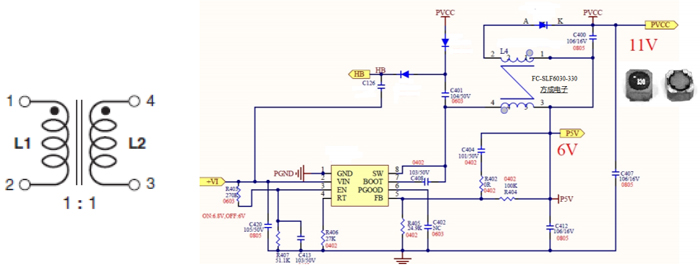

2.Schematic:
3.ELECTRIC CHARACTERICS
| Part Number | Turns Ration | Current Rating2 (mA) | Inductance (uH) | RDC (Ω) | Hi-Pot |
| 1-2 4-3 | (Vdc) 5mA/3S | ||||
| FC-SLF6030-330 | 1:1 | 670 | 33 ±20% | 0.95 | 1000 |
lElectrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .C to +130°C
(1).Rated Current: Base on temp.rise & ΔL/L0A 30% ≦ ℃ Max and ΔT= 40 Typ
(2).Operating Temperature: ‐40°C up to +125℃
(3).Storage Temperature: ‐20°C up to +40°C, 75% RH max.

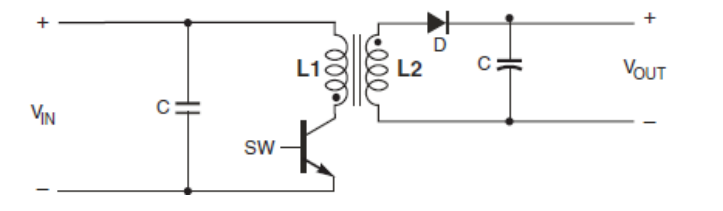

4. Typical Flyback Converter
5. Typical Buck Converter with auxiliary output

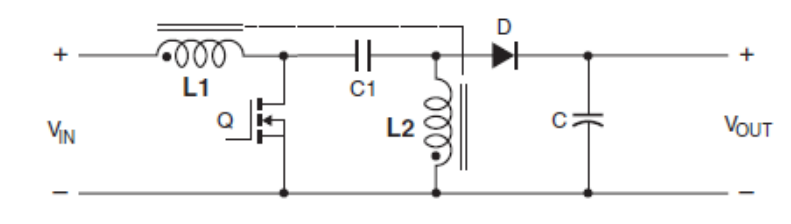

6. Typical SEPIC schematic
