- Small size
- Inductance range: 0.45mH
- turns Ratio: 1:1
- Rated Current: 0.5A
- Insulation Test Voltage: 1.5KVDC
- Operating temperature: –40 ℃ to +125 ℃

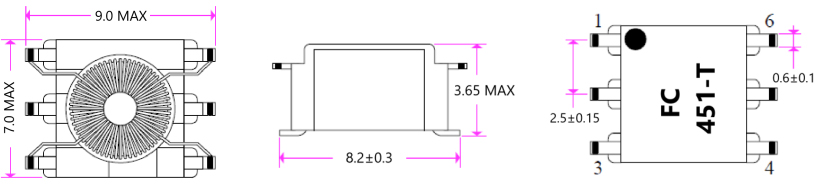

1. Dimensions:mm
2. Schematic:
3. RecommendeLand Pattern: mm
4.Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICAL DATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | N1=N2 | 450μH /MIN | 100KHz,1.0V,25℃ | HP4284A |
| 2 | IR | COIL~CORE | 100Mohm MIN | DC500V | MF2511 |
| 3 | turns Ratio | N1:N2 | 1:1 | 20KHz,1V,25℃ | TH3250 |
| 4 | DCR | N1=N2 | 0.4Ω/MAX | 25℃ | CH502 |
| 5 | Insulation Test Voltage | COIL=>COIL | 1.5KV/DC | 1mA 10S | CJ2670 |
| COIL=>CORE | 0.5KV/DC | 5mA 10S | CJ2670 | ||
| 6 | Rated Current | N1/N2 | 0.5A | / | 6240 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C
