Fangcheng Electronics (Dongguan) Co., LTD. : Specialized in the design, manufacture and sales of inductors, transformers, current transformers, flat transformers and other magnetic components production factory.

Main application areas of products; Photovoltaic/wind power inverter, charging pile, new energy vehicles, communication and module power supply, communication equipment, industrial control, rail transit, military/medical, aviation power supply and other fields.

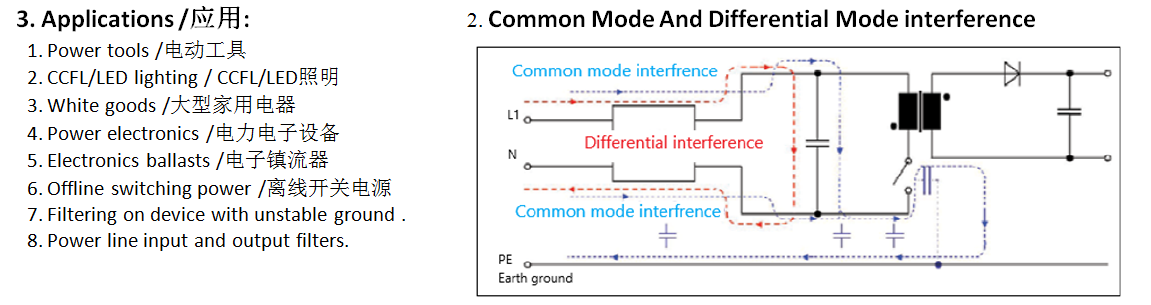

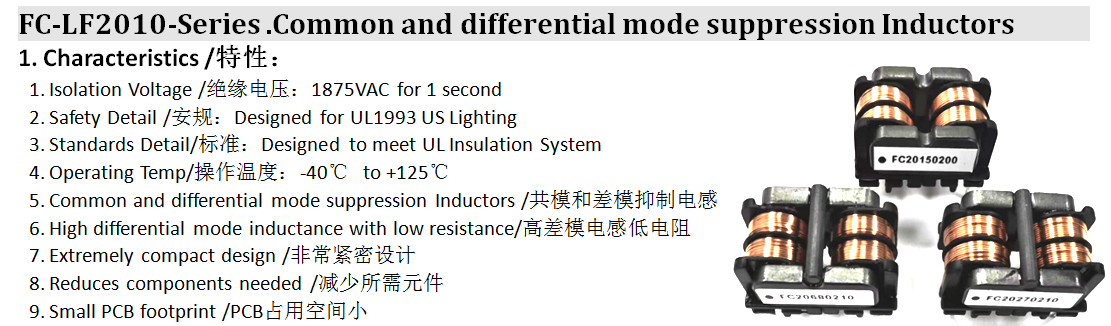

1、Fang Cheng Electronics R & D design launched efficient filter circuit design selection - magnetic integrated common differential mode inductor application: common differential mode magnetic integrated sense, characteristics: Common-mode and differential mode magnetic integrated design, one component can integrate common-mode inductors and differential mode inductors at the same time, effectively inhibit the ripple interference of the circuit input EMC, protect the circuit stability, at the same time, from the design to save PCB board space, but also save the cost of components, common-mode inductance range: 3.3Mh-100mh-nbsp;   Magnetic integrated synchronous integrated differential mode inductance range: 85-5000uH      ; Irms operating current 500mA-2.5A.

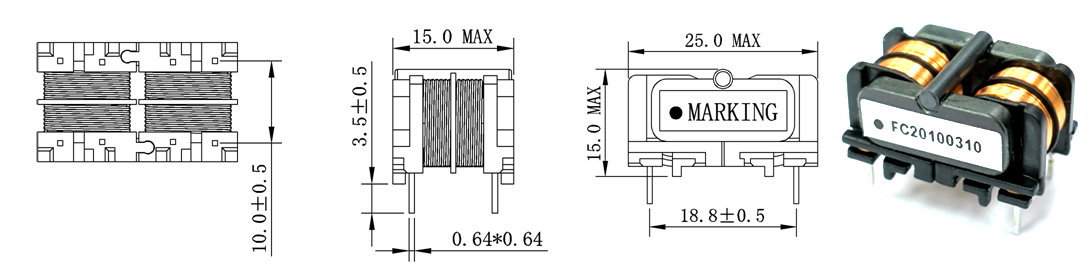

2、Dimensions: mm

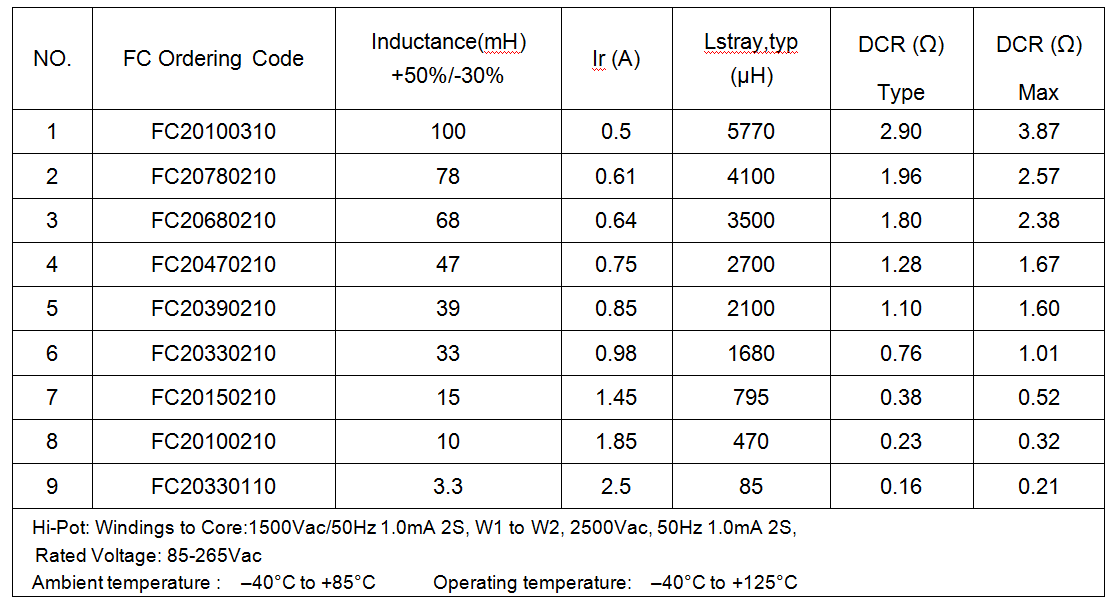

3、Electrical Properties:
