Our Products

Featured Products

Featured Products

High Current Power Line Common Mode Choke FC-DLF2218-2R5-100A-LF

High Current Power Line Common Mode Choke FC-DLF2218-2R5-100A-LF

  • Suitable for common noise reduction of DC Line.
  • Common mode noise filter for broadband transmission or communication equipment

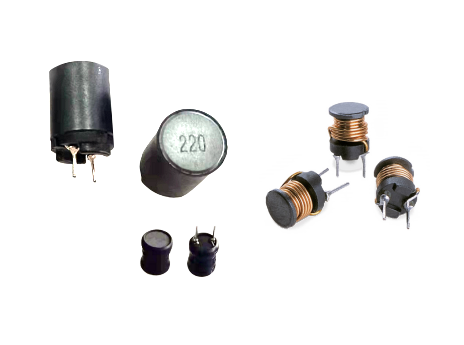

FC-SE2822-Series DIP High Current Inductor

FC-SE2822-Series DIP High Current Inductor

  • High saturation and high current
  • DC/DC converter
  • Operating temperature: –40 °C to +155°C
  • Recommended solder profile: Reflow
PFC-SE2822-Series SMDe High Current PFC Inductor

PFC-SE2822-Series SMDe High Current PFC Inductor

  • High inductance,high current.
  • SMT chip mounting,excitation wire design
  • AC/DC circuit FPC inducto
  • Operating temperature:-40℃ to +125℃

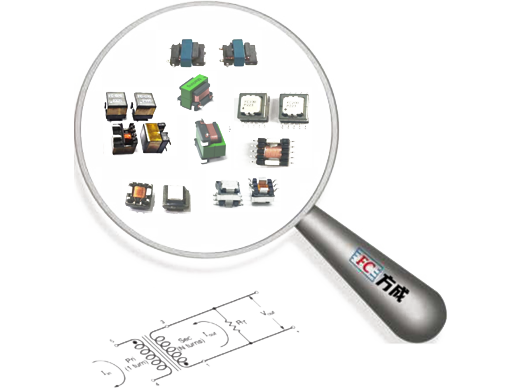

Selecting an Off-The-Shelf Current Sense Transformer for Your Power Supply

Selecting an Off-The-Shelf Current Sense Transformer for Your Power Supply

  • Current-sense transformers create an alternating current in the secondary winding that Is proportional to the current passing through the pnmary winding. The current in the secondary is converted by a burden’ resistor - or terminating resistor (RT) - to a low voltage that can easily be measured in circuit.
FC-SCT 4.2 –Series Current Sense Transformers

FC-SCT 4.2 –Series Current Sense Transformers

  • AEC-Q200 Grade 1 qualified (–40°C to +125°C ambient)
  • Small surface mount current sensors
  • Sensed current up to 7 A; Frequency range up to 1 MHz Very
  • low primary DC resistance
  • 1500 VDC, one minute isolation (hipot) between windings
  • Can also be used in 48 V vehicle elect...
FC-SCT 4.6 –Series Current Sense Transformers

FC-SCT 4.6 –Series Current Sense Transformers

  • AEC-Q200 Grade 1 qualified (–40°C to +125°C ambient)
  • Small surface mount current sensors
  • Sensed current up to 20 A; Frequency range up to 1 MHz
  • Very low primary DC resistance
  • 1500 Vrms, one minute isolation (hipot) between windings
  • Can also be used in 48 V vehic...
FC-SCT5.0 –Series Current Sense Transformers

FC-SCT5.0 –Series Current Sense Transformers

  • Height: 5.5mm Max
  • It is used as DC current transformer for various
  • electronic device detection
  • Current Rating: up to 20A
  • Frequency Range: 100 kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40...
FC-SCT6.0-1:100-30A.Current Sense Transformers

FC-SCT6.0-1:100-30A.Current Sense Transformers

  • Height: 3.8mm Max
  • Footprint: 7.0mm x 6.8mm
  • Current Rating: up to 30A
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C
  • It is used as DC current transformer for various electronic device detection.<...
FC-SCT8.3 –30A-Series Current Sense Transformers

FC-SCT8.3 –30A-Series Current Sense Transformers

  • Height: 7.0mm Max
  • Current Rating: up to 30A
  • Frequency Range: 100 kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C
FC-SCT1010-Series-40A.Current Sense Transformers

FC-SCT1010-Series-40A.Current Sense Transformers

  • Height: 14.0mm Max
  • Current Rating: up to 40A
  • Insulation: Reinforced, 6.5mm creepage ,Isolation AC3750Vrms UL
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C
  • It is used as DC current transformer for various
  • electronic de...

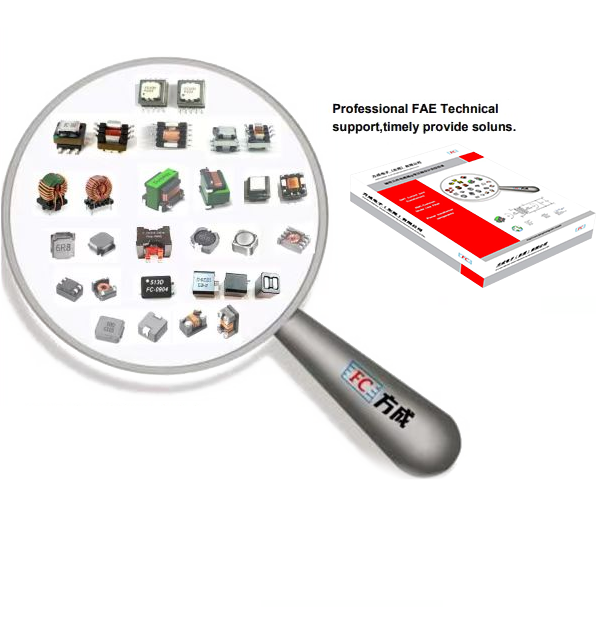

About Fangcheng Electronics Co., Ltd.

Specializes in the design, manufacture and sale of inductors, transformers, current transformers, planar transformers and other magnetic component production plants. The team, including a group of senior engineers and mold automation design professionals, has advanced experimental development and product testing equipment, reaching the domestic leading technical level.

Main application areas of products; photovoltaic / wind power inverters, charging piles, new energy vehicles, communication and module power supplies, communication equipment, industrial control, rail transit, military / medical, aviation power supply and other fields.
